Direct Fire Sight

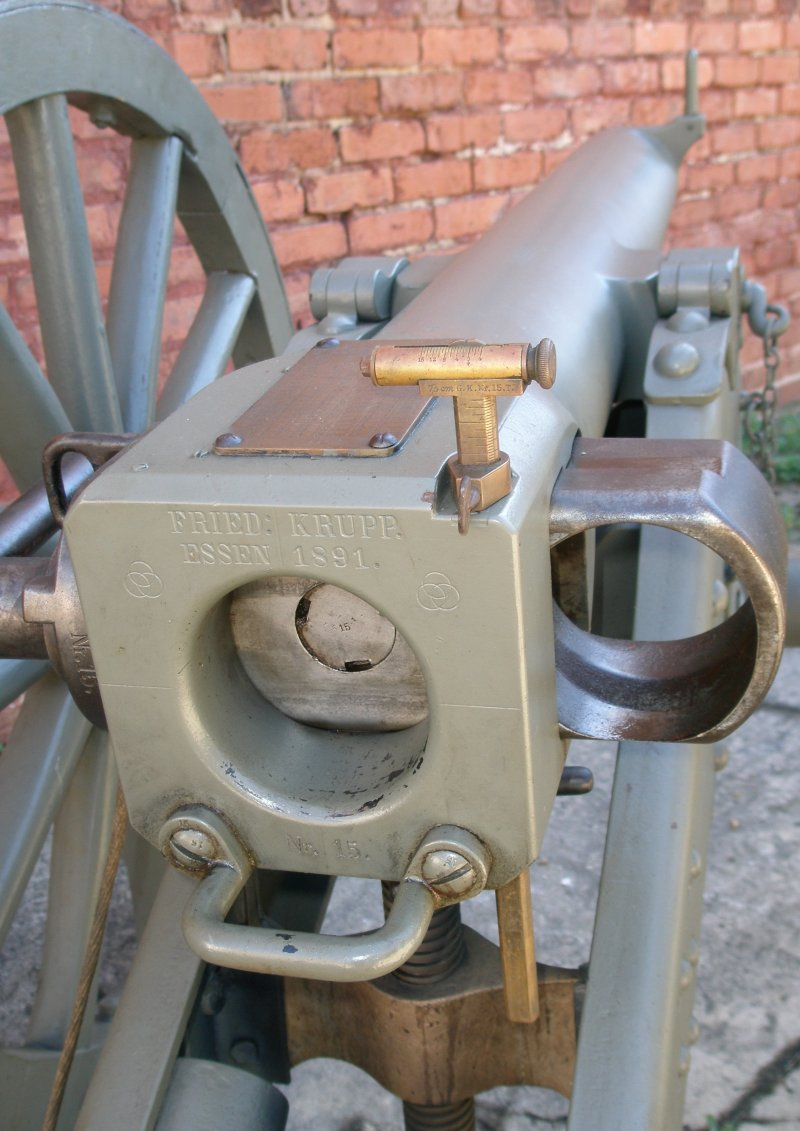

Photograph Below. Direct fire sight for the German 7,5cm Gebirg Kanone L/13. This sight for the 1890s Era mountain gun is typical of direct fire sights generally serving on German Artillery of the time period. A very simular sight would have been used for the 9cm C/73.

Direct Fired Sight for the 7,5cm. G.K. L/13

Below. Case and the Direct Fire Sight

7,5cm Krupp direct fire sight

Below: The older 15cm sFH 1893 Direct Fire Sight. This type sight was replaced on the sFH "93 by the "Dial" type Indirect Fire Sight about 1902.

15cm sFH "93 Direct Fire Sight
