German Field and Foot Artillery 9cm. 1873 Kanone Ammunition

Above: Three German 9cm Kanone projectiles with fuzes.  Left, this appears to be the Gr. 14 projectile with the Doppelzuender 92 neuer Form fuze (Dopp. Z. 92 n.F.)  Middle, this appears to be the Gr. 14 projectile again but with the Dopplezuender 92 with Zunderpulver K. 15 fuze (Dopp. Z. 92 K.15).  Right, seems to be the Gr. 88 Shrapnel projectile

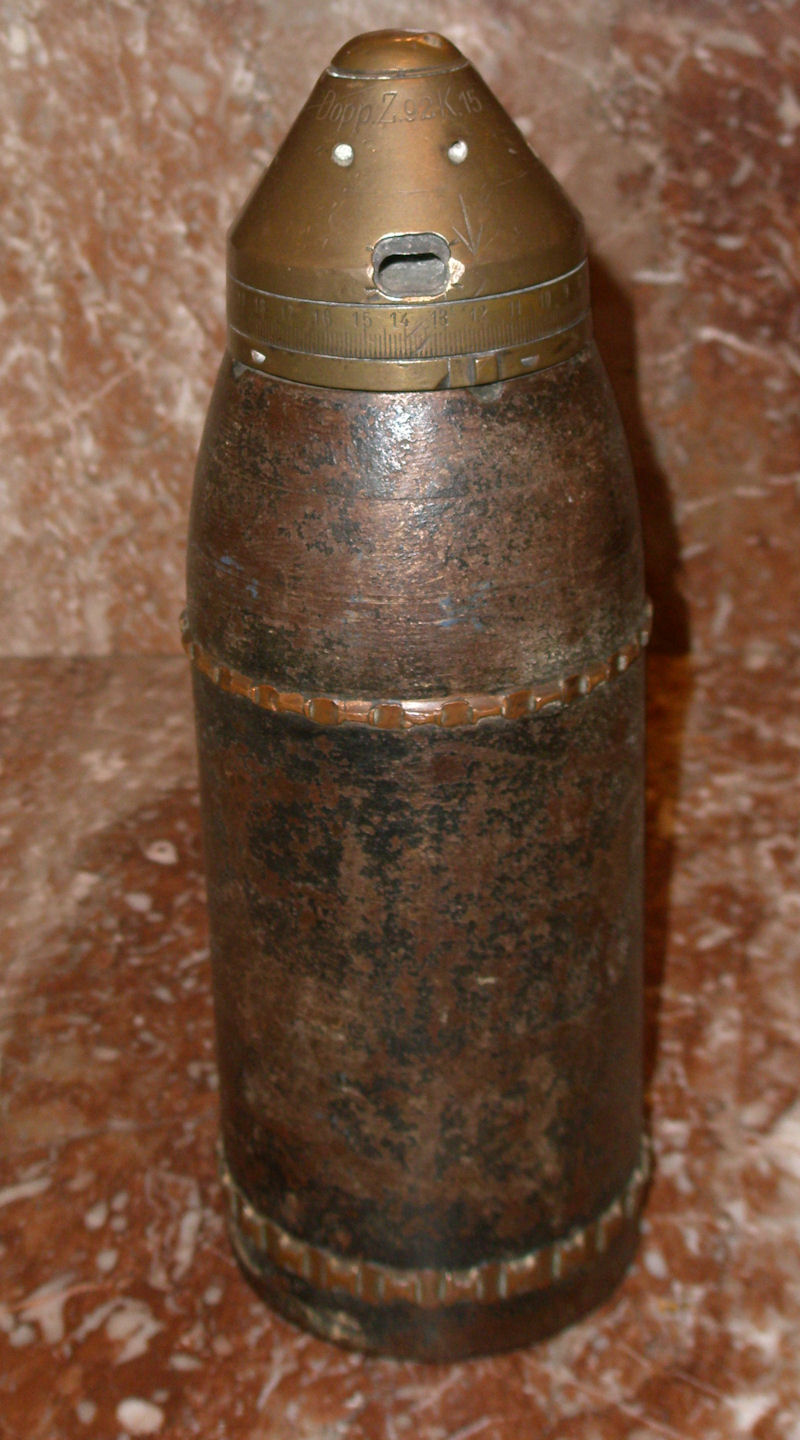

Above: Gr. 14 projectile with the Dopplezuender 92 with Zunderpulver K. 15 (Dopp. Z. 92 K.15)

Above: Gr. 14 projectile with the Dopplezuender 92 with Zunderpulver K. 15 (Dopp. Z. 92 K.15)

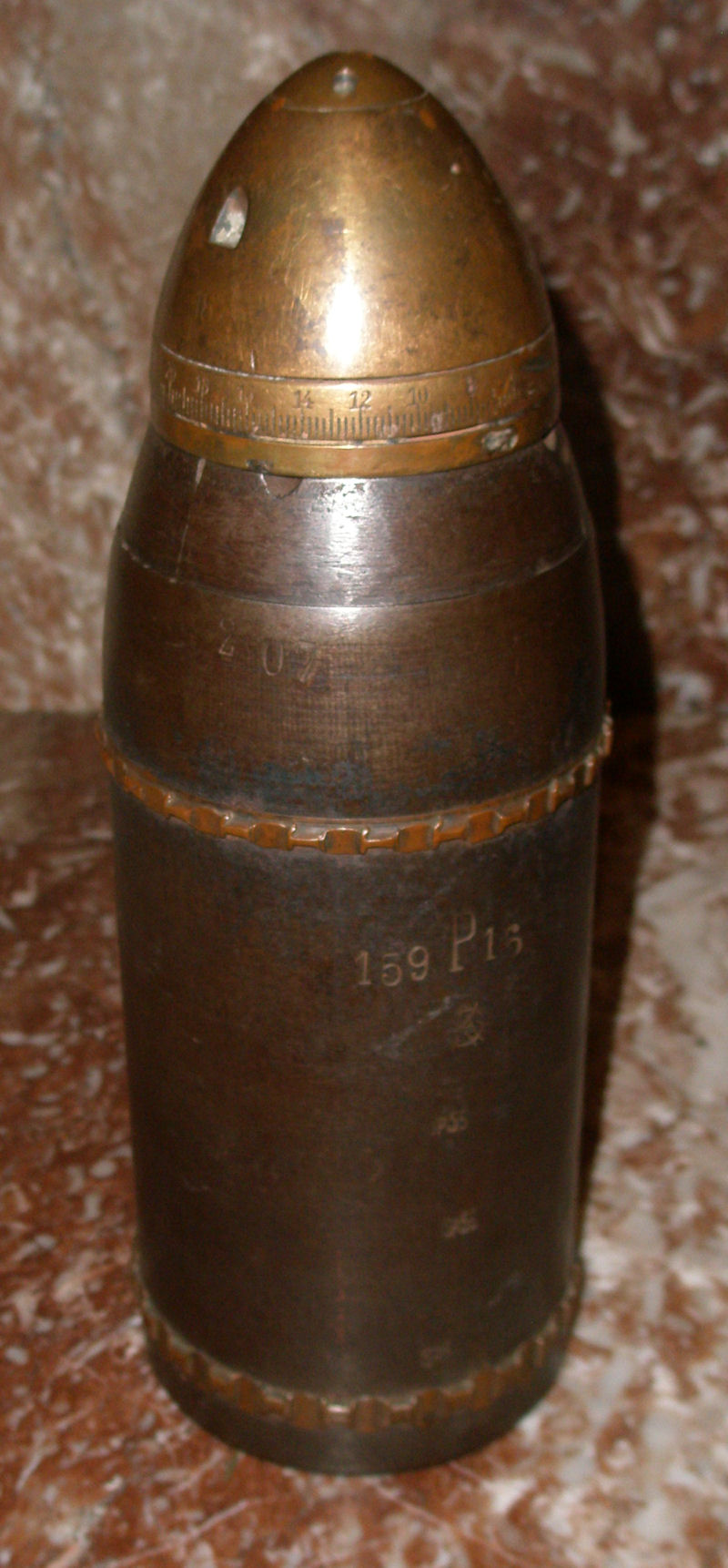

Above: Gr. 14 projectile but with the Doppelzuender 92 neuer Form (Dopp. Z. 92 n.F.)

Above: Gr. 14 projectile but with the Doppelzuender 92 neuer Form (Dopp. Z. 92 n.F.)

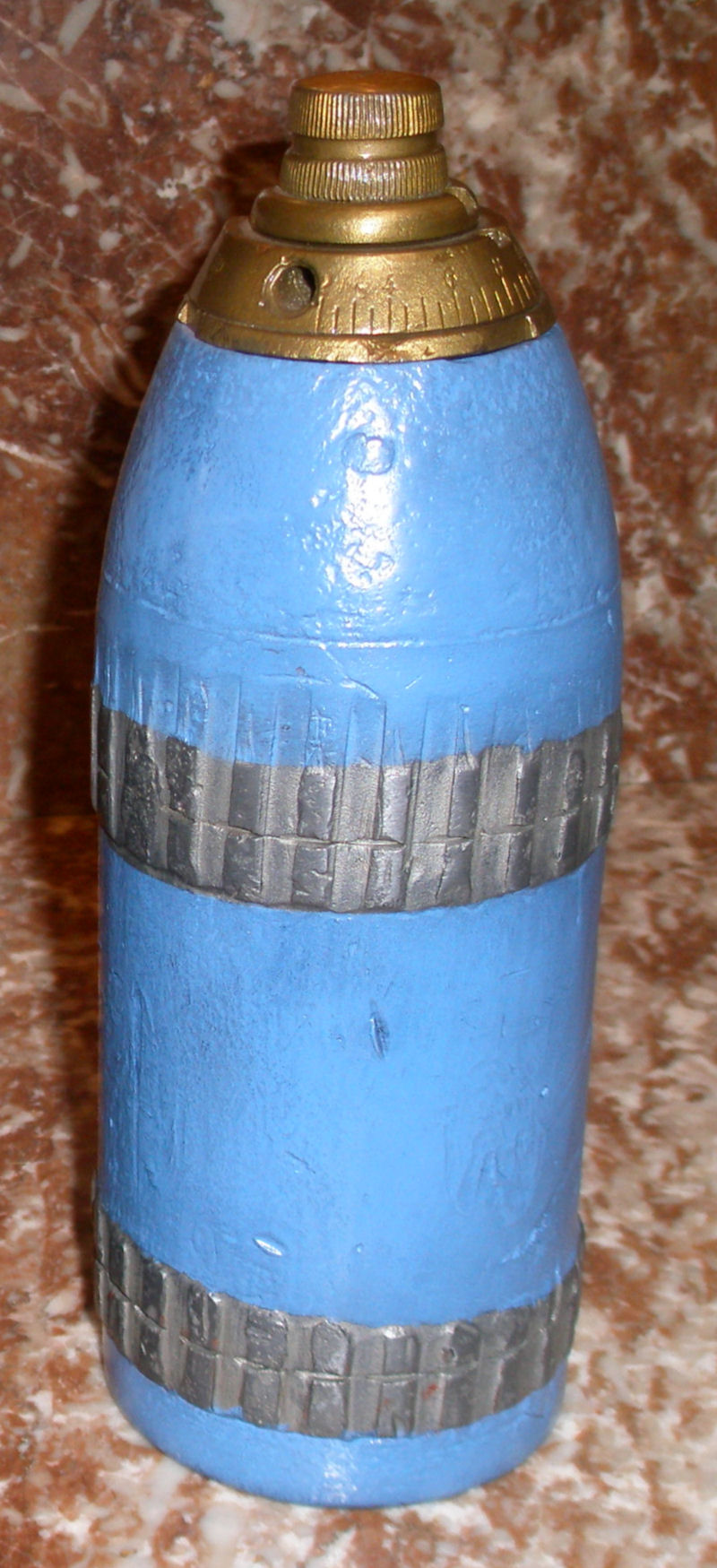

Above: Gr. 88 Shrapnel projectile

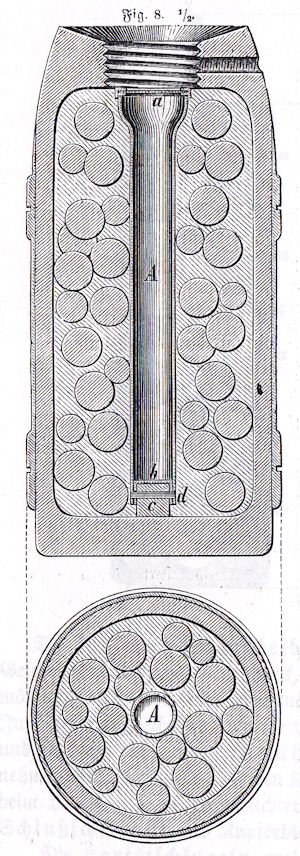

Above: Drawing of the Feldschrapnel projectile discribed in the "Deutsche Feld Artillerie Material vom Jahre 1873", same as the example above

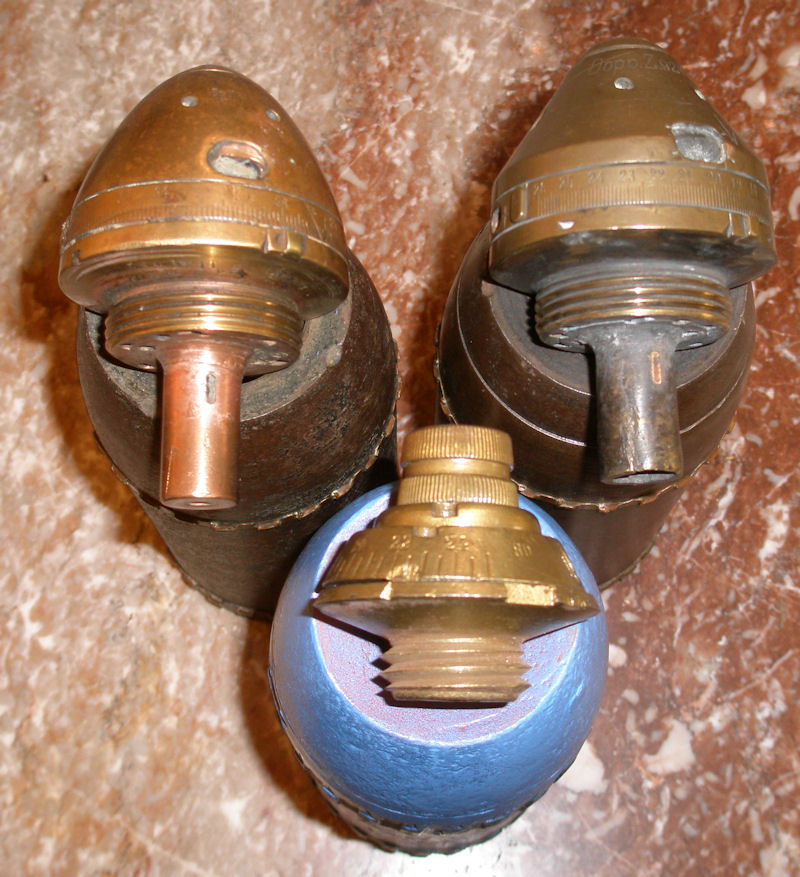

Above: Three German 9cm Kanone fuzes.  Top Left, the Doppelzuender 92 neuer Form fuze (Dopp. Z. 92 n.F.)  Top Right, the Dopplezuender 92 with Zunderpulver K. 15 fuze (Dopp. Z. 92 K.15).  Bottom this is the Feldschrapnelzuender fuze discribed in the "Deutsche Feld Artillerie Material vom Jahre 1873"

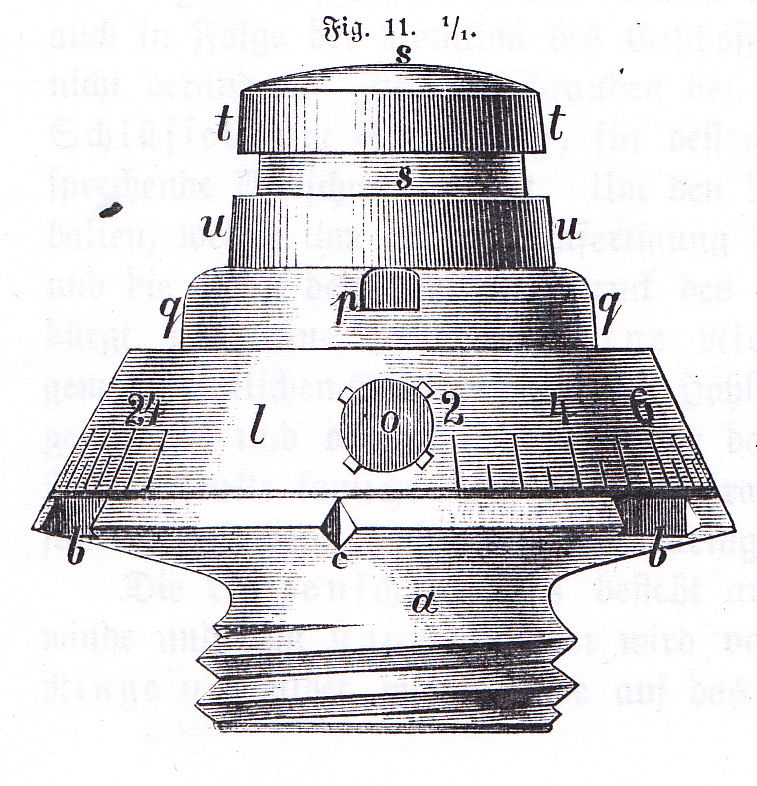

Above: Drawing of the Feldschrapnelzuender discribed in the "Deutsche Feld Artillerie Material vom Jahre 1873", same as the example above
